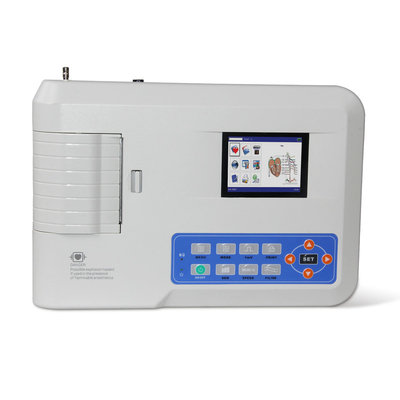

High Quality Contec ECG300G Portable ECG Recorder Digital Three Channel Electrocardiograph Ecg Ekg Monitor Machine

1 Piece
MOQ
$289.00(1 - 99 Pieces) $269.00(100 - 299 Pieces) $249.00(300 - 499 Pieces) $229.00(>=500 Pieces)
価格
High Quality Contec ECG300G Portable ECG Recorder Digital Three Channel Electrocardiograph Ecg Ekg Monitor Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: ECG300G
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Material: Plastic
Shelf Life: 1years
Quality Certification: ce
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009
Type: Pathological Analysis Equipments
証明: CE ISO
Model: Digital 3 Channel ECG Machine
Function: ECG Recorder
Environment temperature: +5℃~+35℃
Leads: 12
Optional: software which can transfe
Power supply AC: 100v-240VAC,50Hz/60Hz
DC: 11.1v,2000mAH Rechargeable lithium ion battery
基本情報
証明: ce, CE ISO
Model Number: ECG300G, Digital 3 Channel ECG Machine
お支払配送条件
Packaging Details: 1XECG300G ECG Machine 1XLead cable 1XLimb electrode(4PCS) 1XChest electrode(6PCS) 1XData transmission line 1XThermal recording paper 1XPower cord 1XEarth wire 1XUser manual
製品の説明
Product Description
Sinohero ECG300G Portable Machine Digital Elektrokardiograph 3 Channel 12 Lead USB ECG Machine EKG Monitor
● Introduction: ECG300G is an Electrocardiograph which can collect 12-lead ECG signal and print waveform by the thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC, selecting any rhythm lead, case database management.
● Feature: 1)Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal. 2)Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing. 3)Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, rhythm 4, rhythm 3 and rhythm 2, etc. Waveform length printed can be adjusted, and with time print function, which meets different requirements. 4)With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden. 5)Built-in memory stores up to 1000 cases, convenient for case review and statistic. 6)Multi-language(Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazakstan, Russian, Ukrainian, Serbian and Slovenian) interface and report.
● Performance: Input mode: floating and defibrillation protection Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB) CMRR: >60dB, >100dB(add filter) Time constant:≥ 3.2s Patient leak current: <10µA Calibration voltage: 1mV Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2% Noise level: <15µVp-p Input circuit current: ≤50nA Input impedance: ≥50MΩ Sampling accuracy: 12-bit Safety classification: class I, type CF and defibrillation-proof applied part Recording mode: thermal printing system Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing. Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing. Manual record: set record according to record format, manually switching leads. Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) Paper size: 80mm(W)×20m(L) Sampling frequency: 1000Hz EMG interference filter: 25Hz/35Hz (-3dB) Power frequency filter: AC 50Hz/60Hz(-20dB) Paper speed: Auto: 25, 50mm/s, ±5% Rhythm: 25, 50mm/s, ±5% Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5% Power supply: AC: 100V~240V(50/60Hz) DC: 7.4V/3500mAh rechargeable lithium battery Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V Waterproof degree: IPX0 Working mode: continuous working Optional: ECG-Sync software+USB cable ECG electrode Bag Conductive gel
● Physical characteristic: Working environment Temperature: 5℃~40℃ Relative humidity: 25%~95%(non-condensing) Atmospheric pressure: 700hPa~1060hPa Transport and storage environment Temperature: -40℃~+55℃ Relative humidity: ≤95% Atmospheric pressure: 500hPa~1060hPa Dimension: 315mm(L) × 215mm(W) × 77mm(H) Weigh: 1.6Kg


Product name
SINOHERO H8 Large screen Multi-Parameter Patient Monitor
Type
Detecting Body Health Medical Equipment
Place of Origin
CHINA
Brand Name
SINOHERO
Standard Parameters
ECG,SPO2,NIBP,PR,RESP,TEMP
Memory Storages
Memory Stores Minimum190000 Results
Power Supply
Electricity
After-sale Service
Online technical support
Material
ABS
Quality Certification
CE ISO FDA
Safety standard
IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Instrument classification
Class II
Display
High Acuity 12.1" color TFT-LCD Dsiplay and Optional Full Touch Screen
Resolution
1024*768 pixels
Power Input
less than 150VA
Power Voltage
AC 100-240V 50/60Hz
Safety class
Category I
Recommend Products

ECG SE509

3-Channel ECG Machine
* 4.3” Vivid color Full Touch Screen * 12 Leads ECG simultaneous acquisition and display * Innovative digital filters&anti-noise technology * Built-in high resolution thermal printer with various 3-channel report printing * Both SD and USB memory enlarge available

ECG SE1208

12-Channel Electrocardiograph * Splendid 10” color TFT with Alpha-numeric keyboard *Simultaneous 12 leads of ECG printing(Roll or Z-fold) *Multiple USB port for connecting PC-ECG software and external printer * Excellent ECG auto-interpretation program and Pacemaker detection * Reliable and fas Network Connectivity and data transmission

ECG SE1200 Lite

3-Channel ECG Machine
* Sharp and clear 3.5" inch TFT screen
* 12 lead ECG simultaneously display
* Built-in database and store more than 1000 pieces of ECG data
* Auto-measurement, auto-analysis and auto interpretation functions
* Both AC and DC power supply with built-in lithium rechargeable battery
Packing & Delivery
Package included: 1XECG300G ECG Machine 1XLead cable 1XLimb electrode(4PCS) 1XChest electrode(6PCS) 1XData transmission line 1XThermal recording paper 1XPower cord 1XEarth wire 1XUser manual
